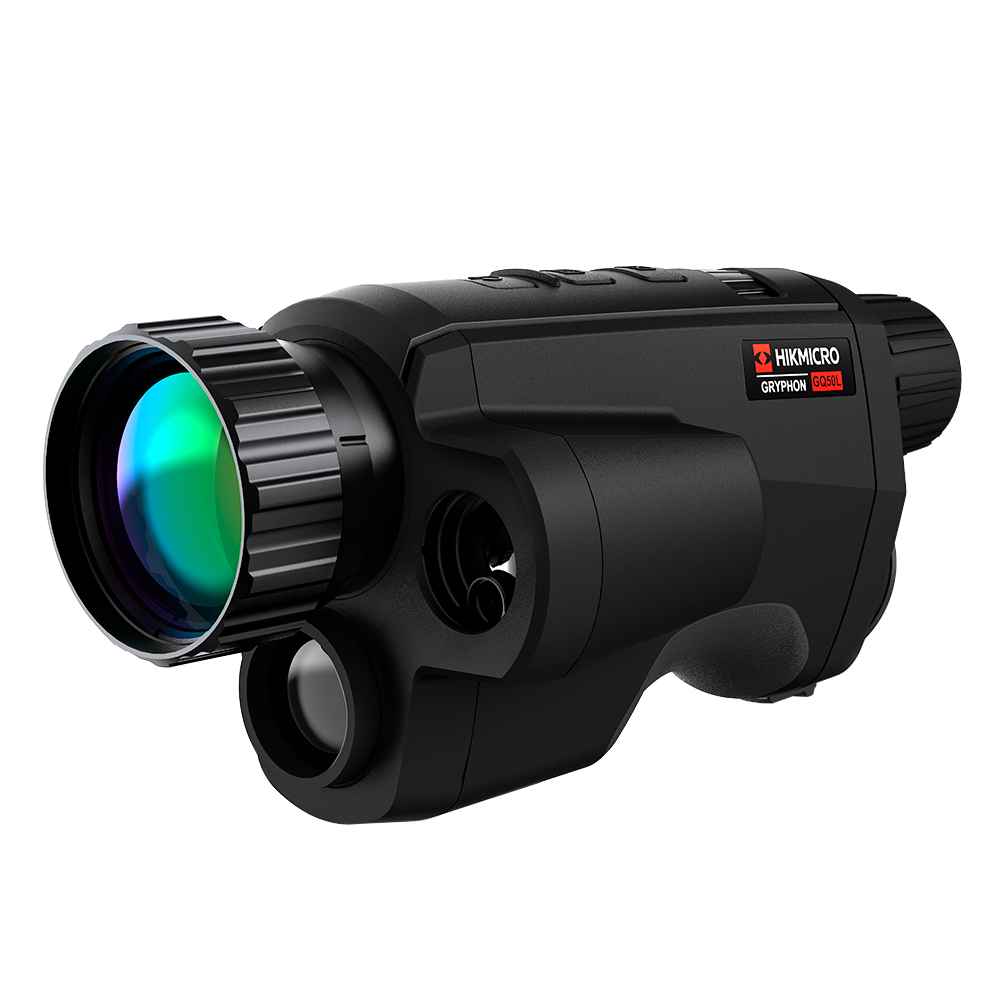

HIKMICRO GRYPHON GQ50L THERMAL MONOCULAR

Hikmicro Gryphon GQ50L Thermal Monocular

The HIKMICRO Gryphon GQ50L portable thermal monocular is equipped with a 12 μm 640 × 512 sensor and a 1024 × 768 OLED screen. This monocular, in addition to a dual camera, also incorporates a distance meter (laser rangefinder) with a maximum measuring range of 600 meters. Built-in high-sensitivity thermal sensor provides you clear vision even in total darkness. The monocular is mainly applied to scenarios such as patrolling, search and rescue, hiking, traveling and hunting, etc.

Main features

640×512 High Sensitivity Thermal Sensor
NETD <35 mK (at 25°C, F# = 1.2)
OLED display with 1024 x 768 resolution
Built-in rechargeable lithium-ion battery
Up to 4.5 hours of continuous operation

Specifications

Image Sensor: VOx 640 × 512 uncooled focal plane arrays
Pixel interval: 12μm
Response wave band: 8 μm 14 μm
Lens: 50mm
NETD: Less than 35 mK (@25°C), F# = 1.2
Field of view: 8.78° × 7.03° (H × V) F1.0
Display: OLED, 1024 × 768
Frame rate: 50 fps
Color Palettes: Vivid Black, Vivid White, Vivid Red, Visible, Auto Blend
Digital zoom: 1×, 2×, 4×, 8×
Hot track: Yes
Detection range: 2600 meters
Measuring range (rangefinder): 600 meters
Measurement accuracy: ±1m
Storage: Built-in memory module (16 GB) Yes
Record video: Yes
Capture snapshot image: Yes
Wi-Fi: Yes
Standby mode: Yes
Battery Type: 18650 rechargeable lithium battery
Operating time: Up to 4.5 hours of continuous operation.
Protection: IP67
Working temperature: From -20°C to 55°C
Dimensions: 183.6mm × 87.2mm × 73.3mm
Weight: 548g
Warranty: 36 months
Sensor warranty: 10 years
