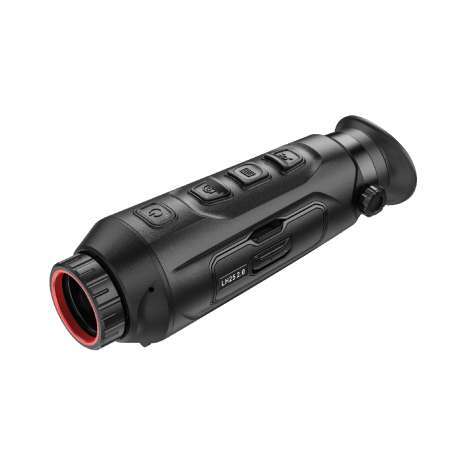

Hikmicro Lynx PRO 2.0 Thermal Monocular
Equipped with a powerful 25 millimeter, 19 millimeter or 15 millimeter objective lens and an advanced 384 sensor with a pixel pitch of 12 micrometers, the HIKMCRO LYNX Pro LH25 2.0 thermal monocular captures highly detailed images at short and medium distances with high sensitivity. NETD thermal resistance < 20 mK. With its exceptional capabilities, the Hikmicro Lynx Pro monocular effectively detects at distances of up to 1200 meters depending on the model, see features.
Main features:
· LYNX Pro 2.0 LH25
NETD high sensitivity thermal module < 20 mK (@25°C, F# = 1.0)
Resolution of 384 × 288 with 12μm detector.
0.39-inch 1024 × 768 resolution OLED display
Replaceable and rechargeable lithium-ion battery
275g lightweight, with a compact and ergonomic design
Up to 6.5 hours of continuous operation
Thermal module
Image Sensor: Uncooled VOx Focal Plane Arrays
Resolution Resolution: 384 × 288
Frame rate: 50Hz
Pixel interval: 12μm
Response waveband: 8 μm to 14 μm
NETD: Less than 20 mK (@25°C), F# = 1.0
Lens (focal length): 25mm, f1.0
Detection range: 1200m
Min. Focus Distance: 2.5m
Magnification: 2.4x to 19.2x (8x)
Field of view (H × V), Degrees / m @100m: 10.5° × 7.9°/ 18.4 m×13.8m
Screen image
Screen: 1024 × 768, 0.39 inches, OLED
Palettes: Warm Black, Warm White, Warm Red, Fusion
FFC (Flat Field Correction) Mode: Auto, Manual, External Correction
Exit pupil: 6mm
Eye relief: 20mm
Diopters (range): -5 D to +3 D
Brightness adjustment: Yes
Tone setting: Cold, Warm
Contrast Adjustment: Yes System
Record video: Yes
Instant image capture: Yes
Audio recording. Yeah
Standby mode: Yes
Storage: Integrated EMMC (16GB)
PIP: Yes
Hotspot: Yes
Hot Track: Yes
Distance measurement: Yes
Feeding
Battery Type: Replaceable and rechargeable lithium-ion battery
Battery run time: 6.5 hours of continuous operation with CVBS and hotspot disabled (@25°C)
Type-C Power Supply: 5VDC, 2A Supports External Power Supply
General
Protection level: IP67
Dimensions: 172.5mm × 56.0mm × 60.8mm
Weight: 277g without battery
Operating temperature: -30°C to +55°C
Box contents
LYNX Pro LH25 2.0.
USB Cable
Dust cloth
Protective bag
Wrist strap
Charger
2 batteries
User manual
· LYNX Pro 2.0 LH19
NETD high sensitivity thermal module < 20 mK (@25°C, F# = 1.0)
Resolution of 384 × 288 with 12μm detector.
0.39-inch 1024 × 768 resolution OLED display
Replaceable and rechargeable lithium-ion battery
280g lightweight, with a compact and ergonomic design
Up to 6.5 hours of continuous operation
Thermal module
Image Sensor: Uncooled VOx Focal Plane Arrays
Resolution: 384 × 288
Frame rate: 50Hz
Pixel interval: 12μm
Response waveband: 8 μm to 14 μm
NETD: Less than 20 mK (@25°C), F# = 1.0
Lens (focal length): 19mm, f1.0
Detection range: 900m
Min. Focus Distance: 1.9m
Magnification: 1.8x to 14.4x (8x)
Field of view (H × V), Degrees / m @100m: 13.7° × 10.3°/24.0 m × 18.0 m
Screen image
Screen: 1024 × 768, 0.39 inches, OLED
Palettes: Warm Black, Warm White, Warm Red, Fusion
FFC (Flat Field Correction) Mode: Auto, Manual, External Correction
Exit pupil: 6mm
Eye relief: 20mm
Diopters (range): -5 D to +3 D
Brightness adjustment: Yes
Tone setting: Cold, Warm
Contrast Adjustment: Yes System
Record video: Yes
Instant image capture: Yes
Audio recording. Yeah
Standby mode: Yes
Storage: Integrated EMMC (16GB)
PIP: Yes
Hotspot: Yes
Hot Track: Yes
Distance measurement: Yes
Feeding
Battery Type: Replaceable and rechargeable lithium-ion battery
Battery run time: 6.5 hours of continuous operation with CVBS and hotspot disabled (@25°C)
Type-C Power Supply: 5VDC, 2A Supports External Power Supply
General
Protection level: IP67
Dimensions: 172.5mm × 56.0mm × 60.8mm
Weight: 282g without battery
Operating temperature: -30°C to +55°C
Box contents
LYNX Pro LH19 2.0.
USB Cable
Dust cloth
Protective bag
Wrist strap
Charger
2 batteries
User manual
· LYNX Pro 2.0 LH15
NETD high sensitivity thermal module < 20 mK (@25°C, F# = 1.0)
384 × 288 resolution with 12μm detector
0.39-inch 1024 × 768 resolution OLED display
Replaceable and rechargeable lithium-ion battery
Light weight of 270g, with a compact and ergonomic design
Up to 6.5 hours of continuous operation
Thermal module
Image Sensor: Uncooled VOx Focal Plane Arrays
Resolution: 384 × 288
Frame rate: 50Hz
Pixel interval: 12μm
Response waveband: 8 μm to 14 μm
NETD: Less than 20 mK (@25°C), F# = 1.0
Lens (focal length): 15mm, f1.0
Detection range: 750m
Min. Focus Distance: 1.5m
Magnification: 1.4x to 11.2x (8x)
Field of view (H × V), Degrees / m @100m: 17.5° × 13.1°/30.8 m × 23.0 m
Screen image
Screen: 1024 × 768, 0.39 inches, OLED
Palettes: Warm Black, Warm White, Warm Red, Fusion
FFC (Flat Field Correction) Mode: Auto, Manual, External Correction
Exit pupil: 6mm
Eye relief: 20mm
Diopters (range): -5 D to +3 D
Brightness adjustment: Yes
Tone setting: Cold, Warm
Contrast Adjustment: Yes System
Record video: Yes
Instant image capture: Yes
Audio recording. Yeah
Standby mode: Yes
Storage: Integrated EMMC (16GB)
PIP: Yes
Hotspot: Yes
Hot Track: Yes
Distance measurement: Yes
Feeding
Battery Type: Replaceable and rechargeable lithium-ion battery
Battery run time: 6.5 hours of continuous operation with CVBS and hotspot disabled (@25°C)
Type-C Power Supply: 5VDC, 2A Supports External Power Supply
General
Protection level: IP67
Dimensions: 164.0mm × 56.0mm × 60.8mm
Weight: 272g without battery
Operating temperature: -30°C to +55°C
Box contents
LYNX Pro LH15 2.0.
USB Cable
Dust cloth
Protective bag
Wrist strap
Charger
2 batteries
User manual
