INFIRAY ZOOM THERMAL MONOCULAR

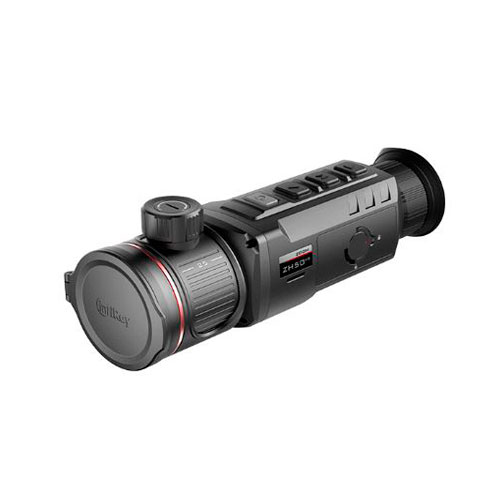

Infiray Thermal Monocular, ZOOM Series Model ZH50 V2

As the pioneer who put dual FOV in thermal optics, InfiRay has returned to the market with the enhanced dual field of view monocular-ZH50 V2. There are four reasons why we should choose ZH50 V2: A device with an adjustable field of view; No refocusing and continuous change; Ultra-clear images and long search via 2 battery packs.

ZH50 V2 will be the perfect choice if you want to experience the adventure of dual field of view easy, it is the right tool you need to take your search to the next level.

Main features

· No refocusing and continuous change.
· 12 µm sensor with NETD ≤25 mK.
· 1440 × 1080 AMOLED display.
· 4X base magnification.
· Long detection range.
· Long duration battery.
· Photo/Video/MIC/32GB.
· Ultra clear mode.
· 5 color palettes.

Data sheet

Detector specifications

· Type: Uncooled Vox
· Resolution, pixels: 640×512
· Pixel size, μm: 12
· NETD，mk: ≤ 25
· Frame rate, Hz: 50

Optical specifications

· Objective lens, mm: 5/50
· Field of view（H×V），°: 17.5×13.1 / 8.8×6.6
· Linear field of view (H×V), m at 100 m: 31×23 / 15×12
· Magnification, ×: 2~8 / 4~16
· Detection range, m (Target size: 1.7 m × 0.5 m, P(n)u003d 99%): 1300 / 2600
· Eye relief, mm: 20
· Exit pupil diameter, mm: 5.5
· Diopter, D: -5 ~ +5

Screen specifications

· Type: FHD AMOLED
· Resolution, pixels: 1440×1080

Battery power supply

· Battery: IBP-1/4400Ah replaceable lithium-ion battery pack
· Max. Operating time (22℃)*, h: 10
· External power supply: 5V (Type C)

Physical specifications

· Wifi/APP: Support (InfiRay Outdoor)
· Photo/video recorder: Support
· MICROPHONE: Support
· Memory capacity: 32 GB
· IP rating: IP67
· Operating temperature, ℃: -20 ~ +50
· Weight (grams): ≤710
· Dimension, mm: 220×59×75
