HIKMICRO THUNDER 35 THERMAL MONOCULAR

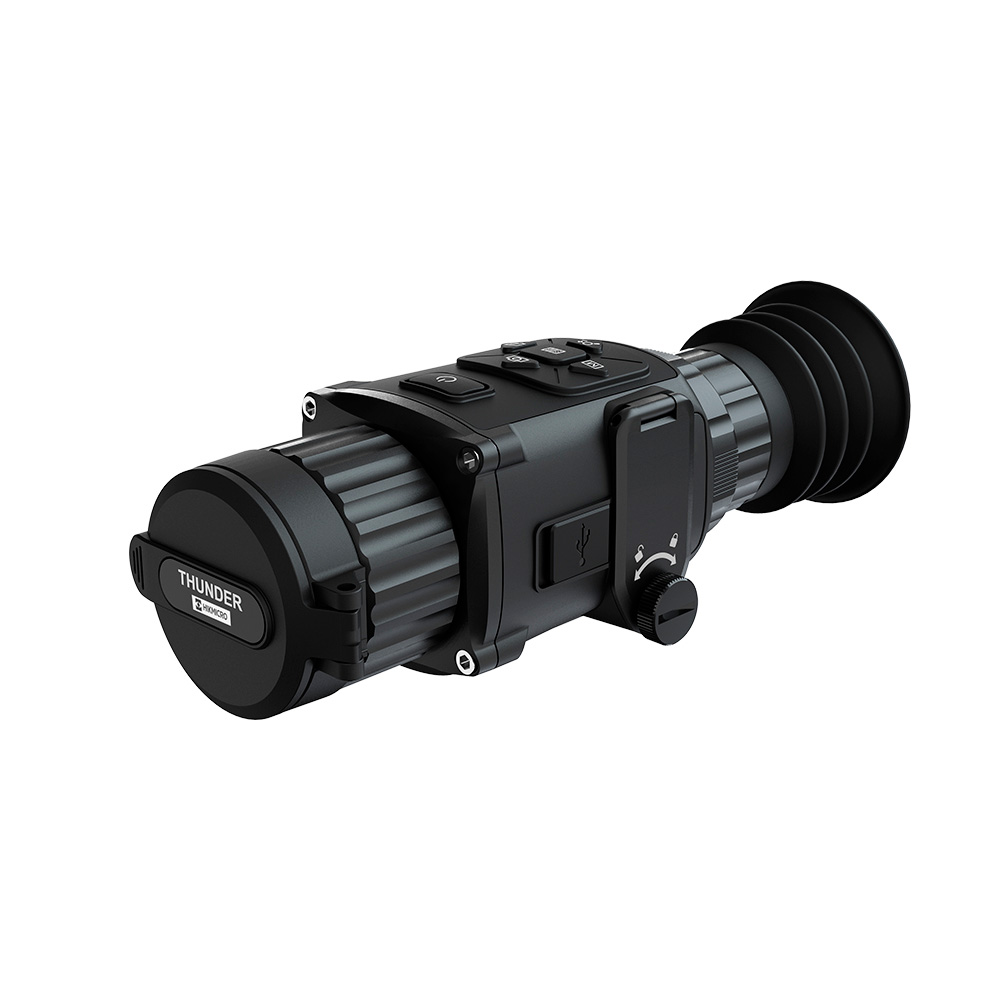

HIKMICRO Thunder 35 mm thermal monocular

HIKMICRO Thunder TH35 Handheld Thermal Monocular is equipped with 17μm 384×288 sensor and 748×561 OLED display. Built-in high-sensitivity thermal sensor provides you clear vision even in total darkness.

The monocular is mainly applied to scenarios such as patrolling, search and rescue, hiking, traveling, and hunting, etc.

Main features

384 × 288 high sensitivity thermal sensor
NETD <35 mK (at 25 °C, F# = 1.0)
OLED display with 748 x 561 resolution
Two built-in CR123A batteries
Up to 4.5 hours of continuous operation

Data sheet

Image sensor: VOx 384 × 288 uncooled focal plane arrays
Pixel interval: 17μm
Response waveband: 8μm 14μm
Lens: 35mm
NETD: Less than 35 mK (@ 25 °C), F# = 1.0
Field of View: 10.0° × 8.0° ( H × V) F1.0
Display: OLED, 748 × 561
Color Palettes: Vivid Black, Vivid White, Vivid Red, Fusion
Digital zoom: 1×, 2×, 4×, 8×
Exit Pupil: 22mm
Eye Relief: 10mm
Detection range: 1300 meters
Storage: Built-in memory module (16 GB) Yes
Record video: Yes
Snapshot Capture: Yes
Wi-Fi: Yes
Standby mode: yes
Battery Type: Replaceable CR123A or RCR 123A battery
Operating time: Up to 4.5 hours of continuous operation
Protection: IP67
Working temperature: From -20 ° C to 55 ° C
Dimensions: 153.2mm × 62.5mm × 59.2mm
Weight: 390g
Warranty: 36 months
Sensor warranty: 10 years

HIKMICRO SIGHT App for IOS and Android

Download the HIKMICRO SIGHT APP to be able to control the monocular from your smartphone or tablet. HIKMICRO SIGHT will allow you to use all the features of the monocular as if you were managing it from the device itself. You can also download the images and videos stored in the internal memory of the monocular and for all those models that have a distance meter, it can be activated from the HIKMICRO SIGHT APP. Compatible with all models of HIKMICRO thermal monoculars.
