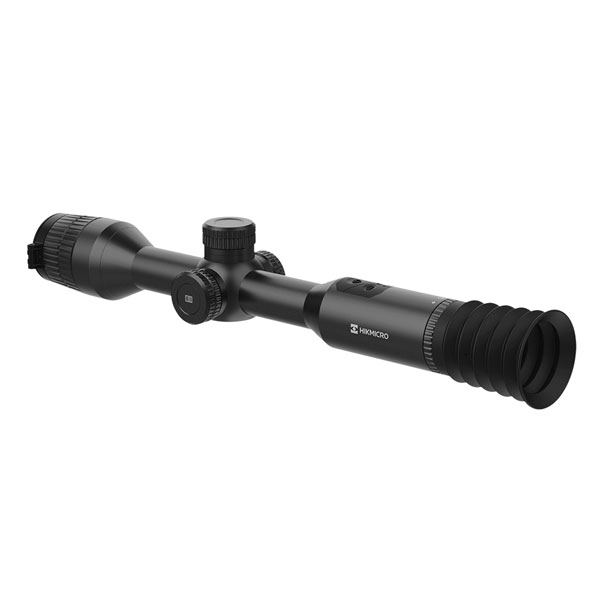

HIKMICRO STELLAR THERMAL VISION SCOPE

HIKMICRO Stellar thermal vision scope, various models available

HIKMICRO STELLAR thermal imaging viewer has a thermal sensor and a 1024 x 768 OLED screen, which provides a clear image in harsh environmental conditions such as darkness, fog, smoke, dust, rain, snow, wood, camouflage, etc.

Main and common features Stellar

Pixel interval: 12μm
Response waveband: 8μm 14μm
NETD: Less than 35 mK (@ 25 °C), F# = 1.0
Display: OLED, 1024 × 768
Reticles: 5 profiles
Color Palettes: Vivid Black, Vivid White, Vivid Red, Fusion
Digital zoom: 1×, 2×, 4×, 8×
Exit Pupil: 5mm
Eye Relief: 60mm
Warranty: 36 months
Sensor warranty: 10 years
Protection: IP67
30mm tube
Record video: Yes
Snapshot Capture: Yes
Wi-Fi: Yes
Storage: Built-in memory module (64 GB) Yes
Battery Type: Two rechargeable lithium batteries
Dimensions: 407mm × 78.1mm × 75.9mm
Working temperature: From -30 ° C to 55 ° C

SQ35 (Ref. HM-502)

Image sensor: VOx 640 × 512 uncooled focal plane arrays
Lens: 35mm
Field of View: 12.52° × 10.03° ( H × V) F1.0
Closest focus distance: 2m
Magnification: 1.62x
Detection range: 1800 meters
Standby mode: yes
Operating time: Up to 13 hours of continuous operation
Weight: 890g

SH35 (Ref. HM-500)

Image sensor: VOx 384 × 288 uncooled focal plane arrays
Lens: 35mm
Field of View: 7.53° × 5.65° ( H × V) F1.0
Closest focus distance: 2m
Magnification: 2.7x
Detection range: 1800 meters
Standby mode: yes
Operating time: Up to 15 hours of continuous operation
Weight: 890g

SQ50 (Ref. HM-503)

Image sensor: VOx 384 × 288 uncooled focal plane arrays
Lens: 35mm
Field of View: 5.28° × 3.96° ( H × V) F1.0
Closest focus distance: 5m
Magnification: 3.85x
Detection range: 2600 meters
Standby mode: yes
Operating time: Up to 15 hours of continuous operation
Weight: 970g

SH50 (Ref. HM-501)

Image sensor: VOx 640 × 512 uncooled focal plane arrays
Lens: 50mm
Field of View: 8.80° × 7.03° ( H × V) F1.0
Closest focus distance: 5m
Magnification: 2.31x
Detection range: 2600 meters
Standby mode: yes
Operating time: Up to 13 hours of continuous operation
Weight: 970g

HIKMICRO SIGHT App for IOS and Android

Download the HIKMICRO SIGHT APP to be able to control the monocular from your smartphone or tablet. HIKMICRO SIGHT will allow you to use all the features of the monocular as if you were managing it from the device itself. You can also download the images and videos stored in the internal memory of the monocular and for all those models that have a distance meter, it can be activated from the HIKMICRO SIGHT APP. Compatible with all models of HIKMICRO thermal monoculars.
